NXAMP4x2MK2 Professional Powered TD Controller

The NXAMP4x2MK2 is a professional powered TD controller designed for demanding NEXO sound reinforcement systems. It combines four channels of Class-D amplification with advanced digital signal processing, loudspeaker management and professional system-control features in a compact rack-mounted platform.

Designed for professional audio applications, the NXAMP4x2MK2 can be used for concerts, touring productions, festivals, live events, permanent installations, corporate productions and other demanding sound reinforcement environments.

The NXAMP4x2MK2 is more than a conventional power amplifier. It combines amplification and loudspeaker processing in a single system, allowing compatible NEXO loudspeakers to be powered and managed from one professional controller.

NEXO’s current product information specifies four amplifier channels that can be bridged in pairs. The amplifier can deliver up to 4 × 1200 W at 8 ohms, 4 × 1900 W at 4 ohms and 4 × 2500 W at 2 ohms in four-channel operation. In two-channel bridged operation, the published figures are up to 2 × 3800 W at 8 ohms and 2 × 5000 W at 4 ohms.

The controller also features four balanced analog inputs, four Neutrik speakON NL-4 loudspeaker outputs, a front-panel color touchscreen, an expansion slot for compatible networking and digital audio cards, and universal 100–240 V mains operation with active power factor correction.

NXAMP4x2MK2 Features and Specifications

What Is the NXAMP4x2MK2?

The NXAMP4x2MK2 is a powered TD controller from NEXO designed for professional sound reinforcement systems.

The controller combines power amplification and digital loudspeaker processing in one unit.

This integrated approach is useful because professional loudspeakers often require more than simple amplification. They require appropriate filtering, system processing, protection and configuration.

The NXAMP4x2MK2 is designed to provide these functions as part of a NEXO-based sound system.

NXAMP4x2MK2 Amplifier

The NXAMP4x2MK2 contains four amplifier channels.

NEXO specifies the amplifier as a Class-D design intended for professional sound reinforcement.

The four channels provide flexibility for multi-way loudspeaker systems and other compatible configurations.

The channels can also be bridged in pairs when the connected loudspeaker configuration requires a higher-power amplifier arrangement.

NXAMP4x2MK2 Output Power

The NXAMP4x2MK2 provides different maximum output levels depending on the load and operating mode.

In four-channel operation, NEXO specifies:

• 4 × 1200 W at 8 ohms
• 4 × 1900 W at 4 ohms
• 4 × 2500 W at 2 ohms

In two-channel bridged operation, NEXO specifies:

• 2 × 3800 W at 8 ohms
• 2 × 5000 W at 4 ohms

The maximum output figures should always be considered together with the requirements of the connected loudspeaker system.

The highest available amplifier output is not automatically the correct configuration for every loudspeaker.

Users should follow the appropriate NEXO system documentation and presets.

Four-Channel Amplification

Four amplifier channels allow the NXAMP4x2MK2 to support professional multi-channel sound reinforcement configurations.

Each channel can be assigned according to the requirements of the compatible loudspeaker system.

This makes the controller suitable for systems where different loudspeaker components require separate amplifier channels.

Four-channel operation can also help reduce the number of separate amplifier units required in a professional rack.

Bridged Amplifier Operation

The four amplifier channels can be bridged in pairs.

Bridging combines amplifier channels to provide a higher-power configuration for compatible loads.

This feature provides additional flexibility for professional system designers.

However, bridged operation should only be used when the connected loudspeaker system supports it.

Always confirm the required configuration before connecting a loudspeaker.

NXAMP4x2MK2 Digital Signal Processing

Digital signal processing is a major part of the NXAMP4x2MK2 architecture.

NEXO specifies three multicore 64-bit processing DSPs.

The DSP system provides the processing power needed for professional loudspeaker management.

This processing can be used to manage the characteristics of compatible NEXO loudspeaker systems.

A properly configured DSP system helps ensure that the amplifier and loudspeaker work together as a coordinated system.

NXAMP4x2MK2 Loudspeaker Controller

The NXAMP4x2MK2 functions as both an amplifier and loudspeaker controller.

This means that the unit can manage the electrical and signal-processing requirements of compatible NEXO loudspeakers.

The integrated approach can simplify system design.

Instead of using separate generic amplifiers and processors, the system can use a dedicated NEXO controller designed around compatible loudspeaker systems.

NXAMP4x2MK2 Sound Performance

The NXAMP4x2MK2 is designed for professional audio performance.

NEXO specifies a frequency response of ±1 dB from 10 Hz to 20 kHz.

The published dynamic range is 110 dB unweighted, with typical THD + N of 0.01 percent on a flat setup.

These specifications describe the electronic performance of the controller.

The final acoustic performance of a sound system depends on the complete system, including loudspeakers, acoustic environment, deployment and system tuning.

NXAMP4x2MK2 Frequency Response

The current NEXO specification lists a frequency response of ±1 dB from 10 Hz to 20 kHz.

A controlled frequency response is important in professional audio because it allows the electronic system to reproduce the incoming signal consistently.

However, the acoustic response heard by the audience is influenced by the loudspeaker and the room.

The NXAMP4x2MK2 therefore works as one component in a complete sound reinforcement system.

NXAMP4x2MK2 Dynamic Range

NEXO lists a dynamic range of 110 dB unweighted.

Dynamic range describes the difference between the lower usable signal level and the highest signal level within the specified operating conditions.

A wide dynamic range is useful in professional sound reinforcement because music and speech contain both quiet details and high-level peaks.

NXAMP4x2MK2 Latency

The current NEXO product specification lists approximately 580 microseconds of latency on a flat setup.

Low latency is important for live sound.

Performers depend on responsive monitoring, and sound engineers need the system to react quickly to changes in the audio signal.

The actual latency can depend on the processing configuration.

NXAMP4x2MK2 Digital Conversion

The current NEXO specifications list 24-bit audio conversion at 96 kHz.

The analog input signal is converted into the digital domain for processing.

After processing, the signal is converted appropriately for the amplifier output stage.

High-quality conversion is an important part of maintaining professional audio performance.

NXAMP4x2MK2 Analog Inputs

The controller provides four balanced analog audio inputs using XLR3 connectors.

Balanced connections are standard in professional audio systems.

They provide reliable signal transmission and are suitable for the cable lengths normally encountered in professional productions.

The four inputs allow multiple audio signals to enter the controller.

NXAMP4x2MK2 Speaker Outputs

The NXAMP4x2MK2 provides four Neutrik speakON NL-4 loudspeaker outputs.

speakON connectors are commonly used in professional loudspeaker systems because they provide a secure connection.

The outputs should be connected using appropriate professional speaker cables.

Correct channel assignment is essential.

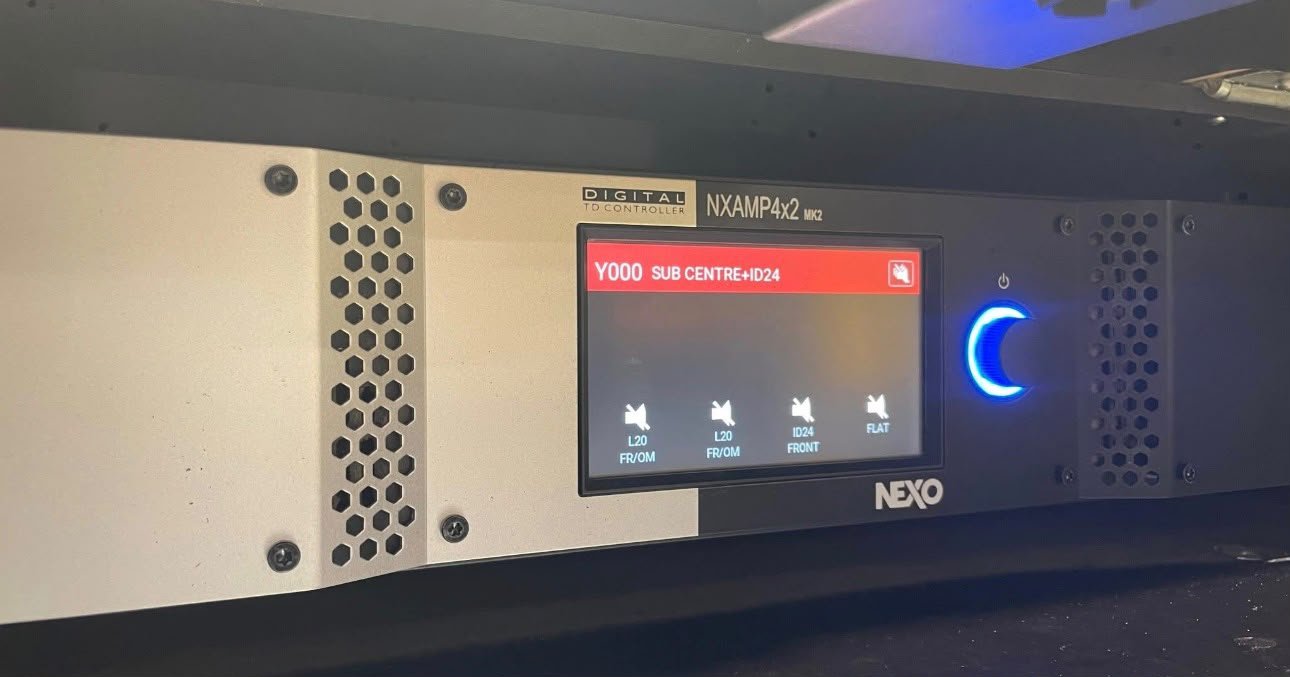

NXAMP4x2MK2 Front Panel

The front panel provides direct access to important system controls.

NEXO specifies a rotary encoder with push functionality and a tactile color screen.

The display is 4.3 inches diagonally with a WQVGA resolution of 480 × 272 pixels.

This interface allows technicians to access system information directly from the amplifier.

NXAMP4x2MK2 Touchscreen

The color touchscreen provides a convenient interface for professional users.

During system setup, technicians can use the front panel to inspect and manage available parameters.

The touchscreen is particularly useful when the amplifier rack is located near the stage or in another technical area.

It reduces the need to access the equipment from the rear panel during basic operation.

NXAMP4x2MK2 Rear Panel

The rear panel provides the primary audio, loudspeaker, control and power connections.

The unit includes four balanced analog inputs and four speakON loudspeaker outputs.

It also includes RS-232 and GPIO connections and an expansion slot for compatible networking and digital audio options.

This makes the controller suitable for integration into professional production systems.

NXAMP4x2MK2 Networking

Networking is an important feature of modern professional audio equipment.

The NXAMP4x2MK2 provides an expansion slot for compatible networking and digital audio cards.

NEXO lists options associated with digital audio formats and remote control.

This provides system designers with flexibility when integrating the amplifier into larger audio networks.

NXAMP4x2MK2 Digital Audio Expansion

The expansion slot allows the controller to be adapted for compatible digital audio systems.

Depending on the installed option, the controller can support different professional digital audio formats.

The appropriate expansion card should be selected based on the existing audio network and production requirements.

NXAMP4x2MK2 Dante

NEXO documentation lists Dante-compatible expansion options for the NXAMP MK2 platform.

Dante is widely used in professional networked audio systems.

A compatible Dante configuration can allow audio signals to be transported over a professional Ethernet-based audio network.

The exact Dante card, firmware and network configuration should always be verified using current NEXO documentation.

NXAMP4x2MK2 AES/EBU

AES/EBU is another professional digital audio format supported through compatible expansion options.

Digital audio connections can reduce analog cabling and allow the amplifier to become part of a larger digital signal chain.

This can be useful in fixed installations and touring systems.

NXAMP4x2MK2 Remote Control

Remote control is useful when amplifier racks are installed away from the mix position.

A large production may place amplifiers backstage, side stage or in dedicated technical rooms.

Remote control can allow technicians to monitor and manage supported parameters without physically accessing the amplifier.

This can improve workflow during a live performance.

NXAMP4x2MK2 Power Supply

The NXAMP4x2MK2 uses a universal power supply.

NEXO specifies operation from 100 to 240 V at 50/60 Hz with active PFC technology.

This makes the controller suitable for professional applications in different electrical environments.

Touring productions benefit from equipment that can work with a broad range of mains voltages.

NXAMP4x2MK2 Power Factor Correction

Power Factor Correction, or PFC, is an important feature in high-power professional amplifiers.

The NXAMP4x2MK2 uses active PFC.

This technology is designed to improve the efficiency of power conversion and help manage the current drawn from the electrical supply.

For professional productions, electrical planning remains essential even when the amplifier includes PFC.

NXAMP4x2MK2 Power Consumption

NEXO lists standby consumption at approximately 10 W and idle consumption at approximately 200 W.

The published power consumption at one-quarter maximum power into 2 ohms is approximately 3500 W.

The actual power requirement during a production depends on the signal level and operating conditions.

NXAMP4x2MK2 Rack Size

The NXAMP4x2MK2 occupies 2U of 19-inch rack space.

This compact format makes it practical for touring racks and permanent equipment racks.

Two rack units allow the amplifier to provide four channels of amplification without requiring a large amount of rack space.

NXAMP4x2MK2 Dimensions

NEXO lists the NXAMP4x2MK2 at approximately 502 mm in depth.

This dimension should be considered when selecting a rack case.

Touring racks should provide sufficient depth for the amplifier and connected cables.

NXAMP4x2MK2 Weight

The current NEXO product information lists the NXAMP4x2MK2 at approximately 16.1 kg.

The relatively compact rack format makes it practical for professional production systems where equipment needs to be transported regularly.

NXAMP4x2MK2 for Concerts

Concerts require powerful and reliable amplification.

The NXAMP4x2MK2 can be used as part of compatible NEXO concert sound systems.

Its four amplifier channels provide flexibility for different loudspeaker configurations.

The integrated DSP also allows the controller to provide the processing required by compatible loudspeakers.

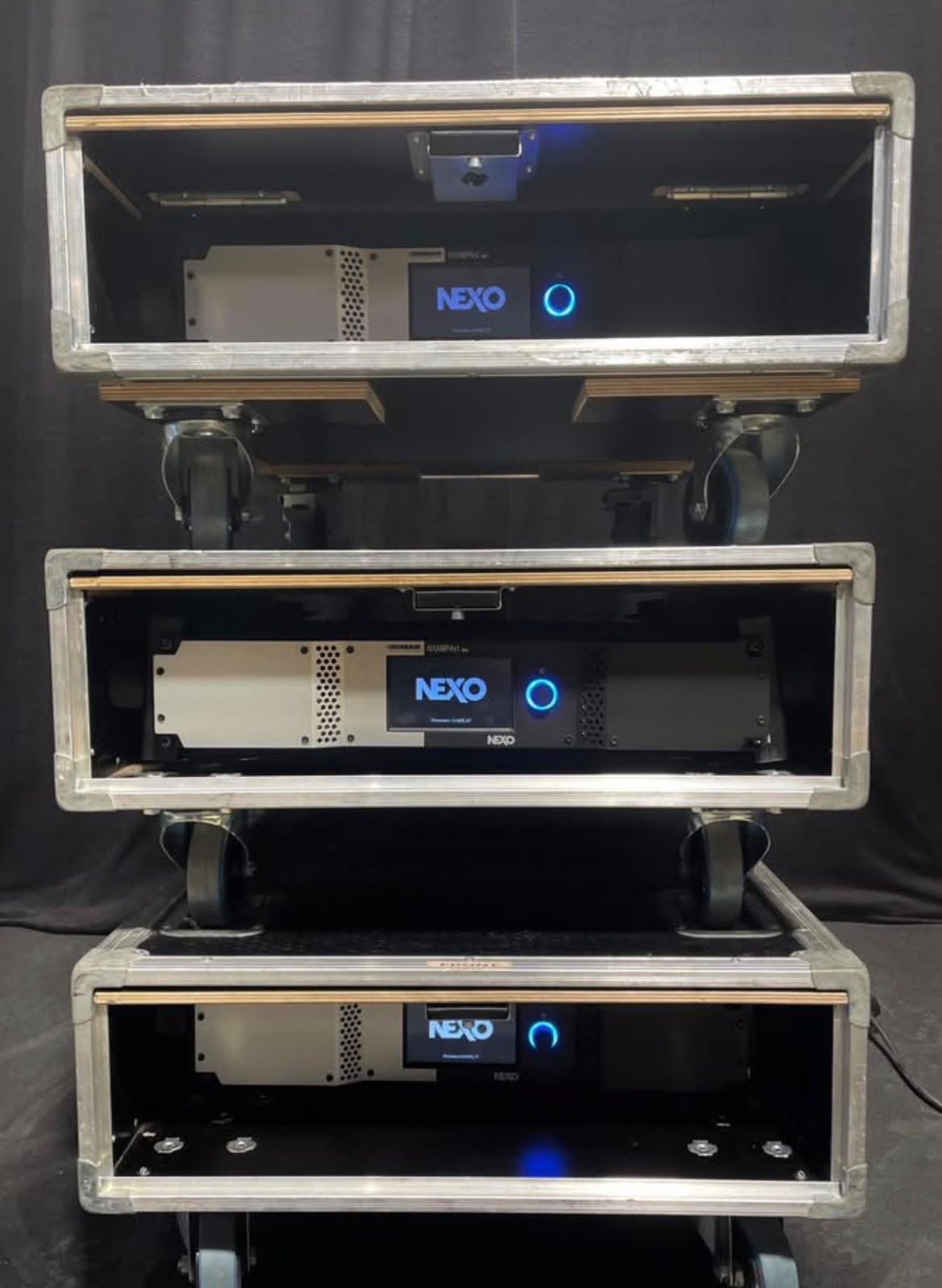

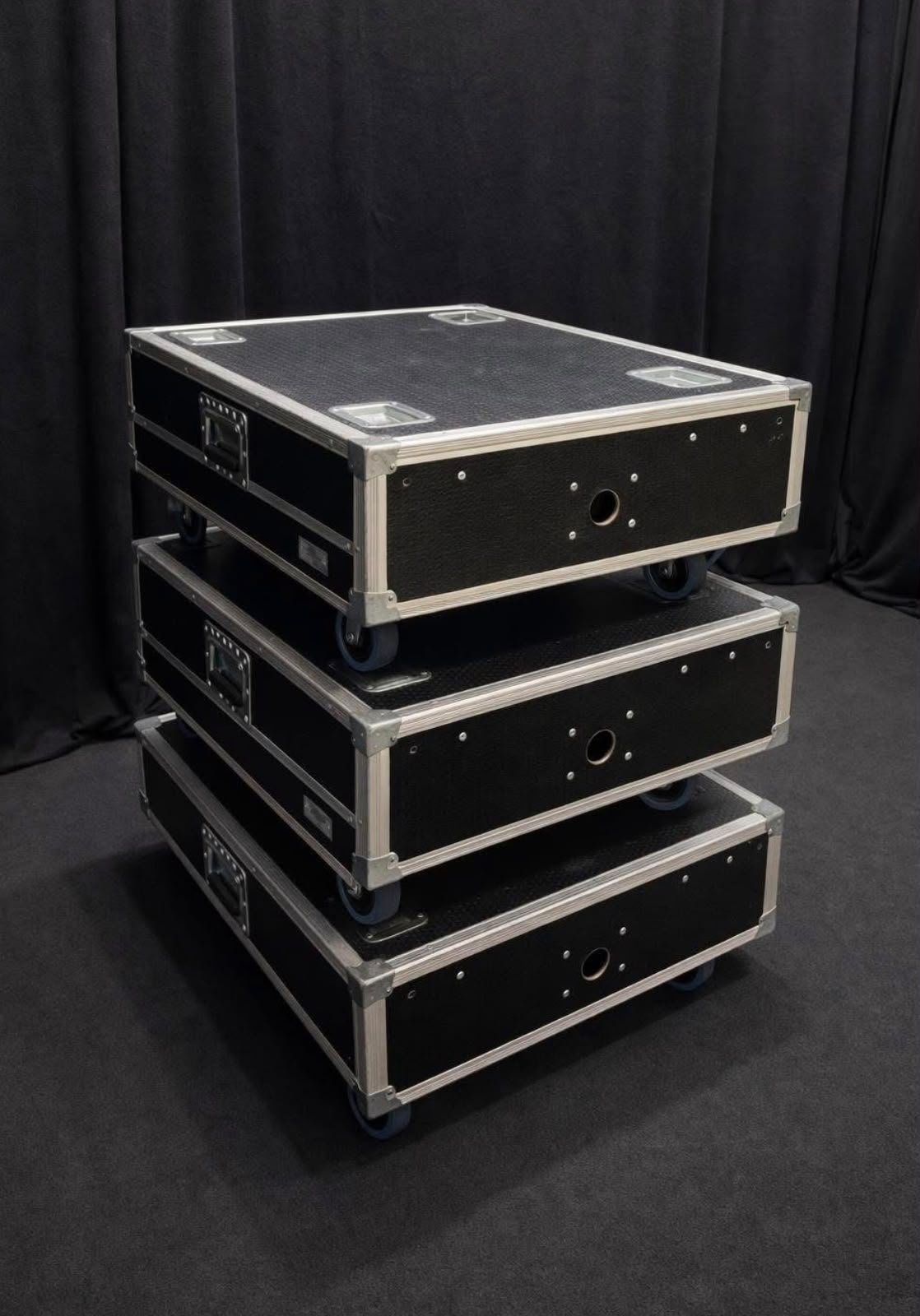

NXAMP4x2MK2 for Touring

Touring productions require equipment that can be transported and deployed repeatedly.

The 2U rack format makes the NXAMP4x2MK2 practical for touring amplifier racks.

A production company can standardize its amplifier racks around compatible NEXO systems.

This can make preparation and troubleshooting easier.

NXAMP4x2MK2 for Festivals

Festival systems can require substantial amplifier capacity.

The NXAMP4x2MK2 can be used in compatible NEXO festival systems.

Multiple units can be deployed when additional amplifier channels are required.

The exact number of amplifiers depends on the loudspeaker system and system design.

NXAMP4x2MK2 for Live Events

The controller is suitable for professional live events where compatible NEXO loudspeakers are used.

Applications can include concerts, corporate events, festivals, conferences, entertainment venues and other productions.

The integrated amplification and processing architecture can simplify system deployment.

NXAMP4x2MK2 for Corporate Events

Corporate events require clear and reliable audio.

The NXAMP4x2MK2 can support compatible NEXO loudspeakers used for presentations, conferences, product launches and corporate entertainment.

Its compact rack format can be useful for mobile production companies.

NXAMP4x2MK2 for Theaters

Theaters require consistent sound coverage and accurate reproduction of speech and music.

The NXAMP4x2MK2 can provide amplification and processing for compatible NEXO systems.

A theater installation may use multiple controllers to support main loudspeakers, fills and other system components.

NXAMP4x2MK2 for Houses of Worship

Houses of worship can require sound reinforcement systems capable of handling both speech and music.

The NXAMP4x2MK2 can be used in compatible NEXO installations.

Its integrated processing helps provide a centralized platform for loudspeaker control.

NXAMP4x2MK2 for Entertainment Venues

Entertainment venues often need high-output sound systems.

The controller can provide amplification for compatible NEXO loudspeakers in clubs and other entertainment spaces.

Correct system design is important because these environments can operate at high output levels for extended periods.

NXAMP4x2MK2 for Permanent Installations

Permanent installations can benefit from centralized amplification and processing.

The NXAMP4x2MK2 can be mounted in a dedicated equipment rack.

The installation should provide appropriate ventilation, electrical supply and service access.

NXAMP4x2MK2 for Rental Companies

Rental companies need equipment that can be used across many productions.

The NXAMP4x2MK2 can form part of a NEXO rental inventory.

Its four-channel design allows the company to create standardized system packages.

Standardization can make equipment preparation and technician training easier.

NXAMP4x2MK2 for Sound Companies

Professional sound companies can use the controller as part of their amplification inventory.

A company working with NEXO loudspeakers can build standardized racks around the NXAMP4x2MK2.

The unit can support different event types when used with compatible loudspeaker systems.

NXAMP4x2MK2 and NEXO Loudspeakers

The NXAMP4x2MK2 is designed around the NEXO loudspeaker ecosystem.

This is important because NEXO loudspeakers use specific system processing and configuration requirements.

Using the recommended NEXO controller can help maintain the intended relationship between loudspeaker, amplification and processing.

NXAMP4x2MK2 and GEO M10

NEXO’s GEO M system information specifically identifies the NXAMP4X2MK2 as a powering and processing solution for the GEO M10 system.

NEXO states that a single four-channel NXAMP4X2MK2 can power and control up to 16 GEO M10 modules in the specified system configuration.

This demonstrates the controller’s role as part of an integrated NEXO system rather than as a generic standalone amplifier.

NXAMP4x2MK2 System Design

Professional system design begins with the loudspeaker system.

The engineer should identify the required coverage and output.

The appropriate NEXO loudspeakers can then be selected.

The NXAMP4x2MK2 can be assigned according to the amplifier requirements of those loudspeakers.

The system should then be optimized using the appropriate NEXO tools and documentation.

NXAMP4x2MK2 and System Processing

Processing is essential to professional loudspeaker performance.

The amplifier does not simply increase signal level.

It also manages the audio processing required for compatible loudspeakers.

This can include system-specific filtering and other processing functions.

Using the correct NEXO configuration is therefore important.

NXAMP4x2MK2 and Loudspeaker Protection

High-output loudspeakers require protection.

The NXAMP4x2MK2’s processing architecture is designed to work with compatible NEXO loudspeaker systems.

Using the appropriate system configuration helps maintain the intended protection and performance characteristics.

NXAMP4x2MK2 System Presets

System presets allow the controller to be configured for compatible loudspeakers.

The available presets depend on the loudspeaker and current NEXO software.

Users should always select the appropriate preset for the connected system.

NXAMP4x2MK2 for Main PA Systems

The controller can be used to power compatible main PA systems.

A main PA system may include line-source arrays, point-source loudspeakers, subwoofers and fills.

The required number of amplifier channels depends on the system.

NXAMP4x2MK2 for Subwoofer Systems

Subwoofers can require substantial amplifier power.

The NXAMP4x2MK2 can provide high-output amplification for compatible NEXO low-frequency systems.

The correct configuration should always be selected based on the manufacturer’s specifications.

NXAMP4x2MK2 for Stage Monitoring

Stage monitoring requires reliable and responsive audio.

The controller’s processing architecture and low latency make it suitable for compatible professional monitoring systems.

The exact monitor configuration depends on the loudspeaker system.

NXAMP4x2MK2 for Large Venues

Large venues can require multiple amplifier racks.

The NXAMP4x2MK2 can be deployed in multiple racks to provide additional channels.

Networking can also allow centralized system management when the appropriate configuration is used.

NXAMP4x2MK2 for Outdoor Events

Outdoor events require careful system design.

The amplifier rack should be protected from weather and environmental hazards.

Power distribution must be planned carefully.

Speaker cables should be secured and protected.

The sound system should be designed to provide the required coverage for the audience area.

NXAMP4x2MK2 and Professional Audio Networking

Networked audio allows professional sound systems to distribute audio and control signals efficiently.

The NXAMP4x2MK2 can be expanded with compatible networking cards.

This allows it to integrate into different digital audio environments.

NXAMP4x2MK2 and System Control

System control allows engineers to manage multiple elements of the sound system.

For large productions, centralized control can save time.

It also allows technicians to monitor equipment without physically accessing every amplifier rack.

NXAMP4x2MK2 Front-Panel Operation

The front-panel controls provide local access.

The rotary encoder and tactile display allow users to interact directly with the unit.

This is useful during setup and troubleshooting.

NXAMP4x2MK2 Rack Integration

The 2U rack format allows the amplifier to be integrated into professional equipment racks.

A rack may contain several amplifiers, network equipment, power distribution and other components.

Proper ventilation should always be maintained.

NXAMP4x2MK2 Touring Rack Design

A touring rack should be designed for repeated transport.

The amplifier should be securely mounted.

The rack should provide adequate ventilation.

All cables should be labeled.

The total weight should be considered.

The rack should be protected using a suitable flight case.

NXAMP4x2MK2 Electrical Planning

High-power amplifiers require appropriate electrical infrastructure.

The NXAMP4x2MK2 uses a universal 100–240 V power supply.

The current specifications list a 20 A Neutrik PowerCON mains connection.

Electrical installation should be carried out by qualified personnel.

NXAMP4x2MK2 Safety

Professional amplifiers contain high-energy electrical systems.

Only qualified technicians should open or service the unit.

Users should inspect cables and connectors before operation.

The amplifier should be installed in a suitable environment.

Ventilation openings should remain unobstructed.

NXAMP4x2MK2 Maintenance

Regular maintenance helps keep professional equipment reliable.

The amplifier should be inspected regularly.

Dust should not be allowed to accumulate around ventilation areas.

Connectors should be checked.

Rack mounting hardware should be secure.

Any unusual behavior should be investigated.

NXAMP4x2MK2 Transportation

The amplifier should be transported in a suitable rack or protective case.

It should be secured during transportation.

Avoid impacts, moisture and extreme environmental conditions.

Proper transportation reduces the risk of physical damage.

NXAMP4x2MK2 Storage

When stored, the unit should be kept in a suitable dry environment.

The amplifier should be protected from excessive dust and moisture.

Before returning it to service, inspect the equipment and cables.

NXAMP4x2MK2 Troubleshooting

Troubleshooting should begin with basic checks.

Confirm that the amplifier has power.

Check the audio input.

Check the loudspeaker connection.

Confirm the correct system configuration.

Check network connections if applicable.

If the problem continues, consult the official NEXO documentation or an authorized service provider.

NXAMP4x2MK2 Firmware

Modern powered controllers rely on firmware.

Firmware can affect system functionality, compatibility and networking.

Users should follow NEXO’s official procedures when updating the controller.

Firmware should be checked before important productions.

NXAMP4x2MK2 and Professional Workflow

A professional workflow begins before arriving at the venue.

Technicians should prepare racks.

Inputs and outputs should be labeled.

System presets should be confirmed.

Speaker cables should be tested.

Network configurations should be checked.

The complete system should be tested before the event.

NXAMP4x2MK2 Pre-Show Checklist

Before a show:

Check mains power.

Check audio inputs.

Check speaker outputs.

Check system presets.

Check network connections.

Check amplifier status.

Check ventilation.

Check rack security.

Check signal levels.

Test the complete system.

NXAMP4x2MK2 Post-Show Checklist

After a production:

Shut the system down correctly.

Disconnect speaker cables safely.

Organize signal cables.

Inspect the rack.

Check for damage.

Document any faults.

Pack the equipment securely.

This helps maintain a professional equipment inventory.

NXAMP4x2MK2 for Professional Audio Businesses

The NXAMP4x2MK2 can be a valuable component of a professional audio business’s inventory.

Rental companies can create standardized packages.

Production companies can create repeatable systems.

Installers can use the controller in permanent installations.

Touring companies can use it in standardized amplifier racks.

NXAMP4x2MK2 Equipment Standardization

Standardization makes professional audio operations more efficient.

When technicians work with the same amplifier platform regularly, they become familiar with its controls.

This can reduce setup time.

It can also reduce troubleshooting time.

NXAMP4x2MK2 System Expansion

A sound company can add additional NXAMP4x2MK2 units as its loudspeaker inventory grows.

Multiple controllers can provide additional amplifier channels.

This allows a system to scale from smaller productions to larger events.

NXAMP4x2MK2 and Redundancy

Large productions may require backup planning.

A production company can maintain spare amplification and signal equipment.

The appropriate redundancy strategy depends on the event.

Critical productions should have an appropriate backup plan.

NXAMP4x2MK2 Buying Guide

Before buying an NXAMP4x2MK2, determine:

The NEXO loudspeaker model.

The number of loudspeakers.

The required amplifier channels.

The required impedance configuration.

Whether bridging is needed.

Whether digital networking is required.

The rack space available.

The electrical supply available.

The number of amplifier units required.

These factors help determine whether the NXAMP4x2MK2 is the right controller for the system.

Buying a New NXAMP4x2MK2

A new NXAMP4x2MK2 is suitable for buyers who want new professional equipment and current manufacturer support.

Purchase through a reputable professional audio supplier.

Confirm warranty terms.

Confirm included documentation.

Confirm compatibility with the intended NEXO loudspeaker system.

Buying a Used NXAMP4x2MK2

Used professional amplifiers can offer value when purchased carefully.

Inspect the physical condition.

Check the display.

Check the amplifier outputs.

Check the input connectors.

Check the cooling system.

Check the power connector.

Check the installed options.

Check firmware information.

Ask about service history.

NXAMP4x2MK2 Price

The price of the NXAMP4x2MK2 varies according to market, availability, seller and condition.

New units should be priced through authorized professional audio suppliers.

Used prices vary according to condition, age and installed options.

Customers should request a current quotation before making a purchase decision.

Why Choose the NXAMP4x2MK2?

The NXAMP4x2MK2 provides several advantages for professional NEXO users.

It combines four amplifier channels with loudspeaker processing.

It supports bridged operation.

It provides a compact 2U rack format.

It includes a color touchscreen.

It provides four balanced analog inputs.

It provides four speakON outputs.

It supports compatible digital audio and networking expansion.

It uses universal 100–240 V power.

These features make the NXAMP4x2MK2 a practical solution for professional sound reinforcement.

NXAMP4x2MK2 Versus Separate Amplifiers

A system built from separate amplifiers and processors can require more rack space and cabling.

The NXAMP4x2MK2 integrates these functions.

This can simplify system design.

It can also make equipment preparation easier for touring and rental companies.

NXAMP4x2MK2 Versus Generic Power Amplifiers

A generic power amplifier provides amplification.

The NXAMP4x2MK2 provides amplification plus loudspeaker processing and system control.

For compatible NEXO loudspeakers, this integrated approach can provide system-specific functionality.

NXAMP4x2MK2 and NEXO System Integration

The controller is designed to work within the NEXO ecosystem.

This integration is important because the amplifier, DSP and loudspeaker can be configured as a coordinated system.

It allows users to create professional sound reinforcement systems based on compatible NEXO products.

NXAMP4x2MK2 Professional System Design

A professional system should begin with the acoustic requirements.

Determine the audience area.

Determine the desired sound level.

Determine the program type.

Determine the loudspeaker coverage.

Then determine the amplifier requirements.

The NXAMP4x2MK2 can be selected as part of that complete design process.

NXAMP4x2MK2 and Coverage

The amplifier itself does not determine coverage.

Coverage comes primarily from loudspeaker design, placement and system configuration.

The NXAMP4x2MK2 provides the amplification and processing platform required by the selected loudspeaker system.

NXAMP4x2MK2 and Sound Pressure Level

Sound pressure level requirements vary by application.

A conference system has different requirements from a festival.

The NXAMP4x2MK2 provides substantial amplifier output for demanding compatible systems.

The actual SPL depends on the loudspeaker, configuration and acoustic environment.

NXAMP4x2MK2 High-Power Applications

High-power audio systems require appropriate electrical and mechanical planning.

The amplifier must be matched to the loudspeaker.

The electrical supply must support the system.

The rack must be properly ventilated.

The speaker cables must be appropriate.

The system must be operated by trained personnel.

NXAMP4x2MK2 Long-Term Reliability

Long-term reliability depends on correct installation and operation.

Keep the unit ventilated.

Protect it from moisture.

Transport it properly.

Inspect connections.

Maintain current documentation.

Use appropriate presets.

Service the equipment when required.

NXAMP4x2MK2 for a Professional Audio Store

For an online professional audio store, the NXAMP4x2MK2 should be presented as a complete professional system component.

Customers should understand that it is designed for compatible NEXO loudspeakers.

The product page should explain the amplification, processing, connectivity and applications.

This helps customers make an informed purchasing decision.

NXAMP4x2MK2 Product Value

The value of the NXAMP4x2MK2 comes from its integrated architecture.

Instead of purchasing a separate amplifier and loudspeaker processor, a compatible NEXO system can use the powered controller as a central component.

This can simplify system design and equipment management.

NXAMP4x2MK2 for Touring Production

Touring productions benefit from compact equipment.

The 2U rack format provides a useful balance between amplifier capacity and rack space.

Multiple units can be installed in touring racks when more channels are required.

NXAMP4x2MK2 for Rental Production

Rental companies can standardize amplifier racks around the NXAMP4x2MK2.

This can make equipment preparation easier.

Technicians can learn one common platform.

System packages can be built around compatible NEXO loudspeakers.

NXAMP4x2MK2 for Permanent Venues

Permanent venues can use the controller in fixed equipment racks.

The rack should provide adequate ventilation and service access.

The system should be configured according to the venue’s loudspeaker requirements.

NXAMP4x2MK2 for Large Events

Large events may use several amplifier racks.

The NXAMP4x2MK2 can provide additional amplifier channels as the system grows.

Network control can also support centralized monitoring.

NXAMP4x2MK2 Professional Audio Connectivity

The combination of analog inputs, speaker outputs, control ports and expansion capability makes the controller adaptable to professional audio systems.

This allows the unit to fit into different production architectures.

NXAMP4x2MK2 System Documentation

Professional teams should maintain documentation for every amplifier rack.

Document:

Amplifier model.

Serial information.

Firmware.

Installed expansion cards.

Input assignments.

Output assignments.

Loudspeaker configurations.

Network settings.

Service history.

Good documentation improves reliability and troubleshooting.

NXAMP4x2MK2 Professional Training

Operators should understand basic audio signal flow.

They should know how to connect inputs and loudspeakers.

They should understand the correct system configuration.

They should know how to identify common errors.

They should also understand electrical and equipment safety.

NXAMP4x2MK2 Common Mistakes

Avoid using incorrect loudspeaker configurations.

Avoid connecting incompatible loads.

Avoid blocking ventilation.

Avoid using damaged cables.

Avoid bypassing recommended processing.

Avoid incorrect bridging.

Avoid unqualified internal repairs.

Avoid operating the amplifier in unsuitable environmental conditions.

NXAMP4x2MK2 Best Practices

Use the manufacturer’s recommended configuration.

Use suitable speaker cables.

Label all connections.

Maintain proper ventilation.

Check the system before every production.

Keep firmware and documentation current.

Transport the amplifier in a suitable rack.

Service the equipment when required.

NXAMP4x2MK2 Technical Specification Summary

The current NEXO specifications identify the NXAMP4x2MK2 as a four-channel powered TD controller with channels bridgeable in pairs.

Maximum output is specified as 4 × 1200 W at 8 ohms, 4 × 1900 W at 4 ohms and 4 × 2500 W at 2 ohms in four-channel mode.

Two-channel bridged operation is specified at up to 2 × 3800 W at 8 ohms and 2 × 5000 W at 4 ohms.

NEXO lists a frequency response of ±1 dB from 10 Hz to 20 kHz, 110 dB unweighted dynamic range, typical 0.01 percent THD + N on a flat setup and approximately 580 microseconds latency.

The controller uses 24-bit/96 kHz audio conversion and three multicore 64-bit DSPs.

The rear panel provides four balanced XLR3 analog inputs and four Neutrik speakON NL-4 outputs.

The unit also provides RS-232, GPIO and an expansion slot for compatible networking and digital audio cards.

The front panel includes a 4.3-inch color touchscreen with 480 × 272 resolution.

The power supply operates from 100–240 V at 50/60 Hz and includes active PFC.

The NXAMP4x2MK2 occupies 2U of 19-inch rack space and weighs approximately 16.1 kg according to NEXO’s current product information.

Frequently Asked Questions

What is the NXAMP4x2MK2?

The NXAMP4x2MK2 is a professional four-channel powered TD controller from NEXO that combines amplification and digital loudspeaker processing.

How many channels does the NXAMP4x2MK2 have?

It has four amplifier channels that can be bridged in pairs.

How powerful is the NXAMP4x2MK2?

NEXO specifies up to 4 × 2500 W at 2 ohms in four-channel mode and up to 2 × 5000 W at 4 ohms in two-channel bridged mode.

Is the NXAMP4x2MK2 a power amplifier?

It includes four power amplifier channels, but it also functions as a powered TD controller with digital signal processing and loudspeaker management.

Is the NXAMP4x2MK2 suitable for concerts?

Yes. It is designed for professional NEXO sound reinforcement systems and can be used for compatible concert systems.

Is the NXAMP4x2MK2 suitable for touring?

Yes. Its compact 2U rack format makes it suitable for professional touring systems.

Can the NXAMP4x2MK2 be used for festivals?

Yes. Multiple units can be used as part of compatible NEXO festival sound systems.

Can the NXAMP4x2MK2 be bridged?

Yes. The four amplifier channels can be bridged in pairs.

Does the NXAMP4x2MK2 have DSP?

Yes. NEXO specifies three multicore 64-bit processing DSPs.

Does it have analog inputs?

Yes. It provides four balanced analog inputs using XLR3 connectors.

What speaker connectors does it use?

The current specifications list four Neutrik speakON NL-4 loudspeaker outputs.

Does it support digital audio?

Yes. The expansion slot supports compatible digital audio and networking cards.

Does it support Dante?

Compatible Dante expansion options are available for the NXAMP MK2 platform. The exact option and configuration should be confirmed using current NEXO documentation.

What is the rack size?

The NXAMP4x2MK2 occupies 2U of 19-inch rack space.

How much does it weigh?

NEXO lists the NXAMP4x2MK2 at approximately 16.1 kg.

What power supply does it use?

It uses a universal 100–240 V, 50/60 Hz power supply with active PFC.

Can it power NEXO GEO M10 systems?

Yes. NEXO identifies the NXAMP4X2MK2 as a powering and processing solution for GEO M10 and states that one unit can power and control up to 16 GEO M10 modules in the specified configuration.

Can I use it with any loudspeaker?

It should be used with compatible NEXO loudspeaker configurations and according to NEXO’s recommended system settings.

Is it suitable for rental companies?

Yes. Its four-channel design and integrated processing make it suitable for professional rental inventories using compatible NEXO systems.

Is it suitable for permanent installations?

Yes. It can be installed in professional sound reinforcement systems where compatible NEXO loudspeakers are used.

What should I check before buying a used NXAMP4x2MK2?

Check the chassis, screen, controls, connectors, speaker outputs, cooling, power connection, firmware, expansion options and service history.

Final Conclusion

The NXAMP4x2MK2 is a professional powered TD controller designed for NEXO sound reinforcement systems. It combines four channels of Class-D amplification with advanced digital processing and professional system-control functionality.

Its four-channel architecture provides flexibility for professional audio applications, while the ability to bridge channels gives system designers additional configuration options.

With up to 4 × 2500 W of specified output in four-channel 2-ohm operation, the NXAMP4x2MK2 provides substantial amplification capability for compatible professional loudspeakers.

Its integrated DSP platform, four balanced analog inputs, four speakON outputs, touchscreen interface, networking expansion capability and universal power supply make it a practical platform for professional sound reinforcement.

The controller is suitable for concerts, festivals, touring productions, corporate events, theaters, entertainment venues, permanent installations and rental systems.

For professional audio companies using NEXO loudspeakers, the NXAMP4x2MK2 can simplify system design by combining amplification and loudspeaker processing into one compact 2U rack unit.

For the best results, the controller should always be configured according to current NEXO documentation and used with compatible loudspeaker systems.

If you are purchasing an NXAMP4x2MK2 for a professional sound system, provide the loudspeaker models, quantity, intended application and system requirements when requesting a quotation. This allows the appropriate amplifier configuration to be confirmed before purchase.

https://soundprotech.shop/product/nxamp4x4-mk2/

https://www.nexo-sa.com/products/nxamp4x2mk2/?utm_source
