Meyer Sound LYON-M: Powerful Line Array Package for Sale

Meyer Sound LYON-M Line Array Loudspeakers With Cart and Fly Frame

Meyer Sound LYON-M Line Array Package With Cart and Fly Frame

Meyer Sound LYON-M line array loudspeakers with caster cart and fly frame are available from Sound Pro Tech. This professional package provides a practical solution for touring companies, AV rental businesses, concert venues, festivals, theaters, houses of worship and large permanent installations.

The LYON-M is a self-powered linear line array loudspeaker from Meyer Sound’s LEO family. It was developed for medium to large sound systems that require high output, controlled coverage and clear reproduction from a relatively compact enclosure.

This package includes the selected quantity of Meyer Sound LYON-M loudspeakers, a compatible transport cart and fly-frame hardware. The exact quantity and included accessories will be specified on the final quotation or invoice.

Each used loudspeaker is professionally inspected and tested before sale. Contact Sound Pro Tech for current availability, real photographs, serial numbers, production information and a delivery quotation within France, Europe or internationally.

Powerful Self-Powered Line Array Performance

The Meyer Sound LYON-M combines its loudspeaker components, internal processing and amplification in a single professional enclosure. Because each cabinet is self-powered, a separate external amplifier is not required to operate the loudspeaker.

The onboard amplifier is specifically matched to the installed drivers. This integrated design helps maintain consistent performance and removes the uncertainty involved in matching separate amplifiers, crossovers and loudspeaker components.

Each cabinet contains a three-channel Class AB/H amplifier system rated at up to 8,500 watts peak. The amplifier powers the low-frequency and high-frequency sections while internal processing manages frequency correction, phase alignment and driver protection.

A self-powered system can also simplify equipment preparation. Instead of transporting external amplifier racks for every loudspeaker section, the production team supplies AC power and balanced audio to the cabinets. Suitable power distribution, signal cabling and system processing are still required.

Dual 12-Inch Low-Frequency Drivers

Each Meyer Sound LYON-M contains two proprietary 12-inch long-excursion cone drivers. These drivers reproduce the low-frequency and midrange content required for music, vocals and other demanding program material.

The low-frequency enclosure is tuned to provide strong output while maintaining the linear performance expected from a professional Meyer Sound system. The drivers are engineered to handle high continuous operating levels during concerts and long production schedules.

The loudspeaker’s published operating frequency range extends from approximately 55 Hz to 16.5 kHz. Dedicated low-frequency control elements are normally added when a system needs deeper bass for live music, festivals or electronic program material.

Meyer Sound’s 1100-LFC is a particularly suitable low-frequency partner for LYON systems. The appropriate number of subwoofers will depend on the number of LYON-M cabinets, the venue, the audience size and the desired bass output.

High-Frequency Clarity and Projection

The high-frequency section uses two 3-inch diaphragm compression drivers. These drivers are coupled to a constant-directivity horn through Meyer Sound’s patented REM manifold.

The REM manifold helps create the controlled vertical behavior required for a line array while maintaining clear high-frequency reproduction. This design supports consistent coverage when multiple cabinets are combined in a properly configured array.

Precise phase and magnitude alignment between the low-frequency and high-frequency sections helps the system reproduce vocals, instruments and transient information accurately.

The LYON-M provides 90-degree horizontal coverage. Vertical coverage depends on the number of cabinets, their splay angles and the overall shape of the array. This allows a system designer to configure the array for the seating and geometry of a specific venue.

Impressive Output for Large Events

The Meyer Sound LYON-M is capable of substantial sound pressure for professional reinforcement. Meyer Sound specifies a maximum SPL of up to 150 dB under its stated measurement conditions.

The published linear peak level is 143.5 dB with a crest factor greater than 17.5 dB using Meyer Sound’s M-Noise test signal. These specifications show the loudspeaker’s ability to reproduce high-level program material while maintaining useful dynamic headroom.

The sound level experienced by an audience will depend on the array size, listening distance, venue, system processing and environmental conditions. The manufacturer’s figure should therefore be treated as a loudspeaker specification rather than a guaranteed audience level.

For the best results, the complete system should be designed for the actual venue using appropriate prediction software. Meyer Sound recommends its MAPP System Design Tool for examining coverage, output and rigging loads.

Professional Line Array Coverage

Line arrays use multiple loudspeaker cabinets to create controlled coverage across an audience area. The number of Meyer Sound LYON-M cabinets required per side will depend on the throw distance, trim height, audience geometry and required sound level.

The integrated rigging allows splay angles between adjacent cabinets to be adjusted. These angles shape the vertical coverage of the completed array.

Smaller angles between cabinets can support longer projection, while wider angles can increase coverage for closer seating areas. The final arrangement must be calculated for the venue rather than selected only by visual preference.

The LYON-M is intended for primary array coverage and provides 90-degree horizontal dispersion. Meyer Sound also produced LYON-W and LYON-WXT versions for wider coverage. Buyers should confirm that the cabinets offered are the LYON-M version if 90-degree coverage is required.

Compatible Fly Frame and Rigging

This package includes a compatible fly frame for assembling an approved LYON array. Meyer Sound’s dedicated top-grid accessory is known as the MTG-LYON.

The grid provides multiple pickup points and supports different array configurations within the manufacturer’s specified load limits. The number of cabinets that may be flown depends on the safety factor, pickup configuration and total calculated load.

The cabinets use captive GuideALinks and quick-release pins to connect the enclosures and set their splay angles. This integrated system can help make array assembly more efficient for experienced production crews.

All rigging equipment should be inspected before use. Flown systems must be designed and installed by qualified professionals who understand load calculations, suspension hardware and local safety requirements.

The included frame and all related pins or components should be listed individually on the invoice. Contact Sound Pro Tech for photographs of the actual fly frame included with the package.

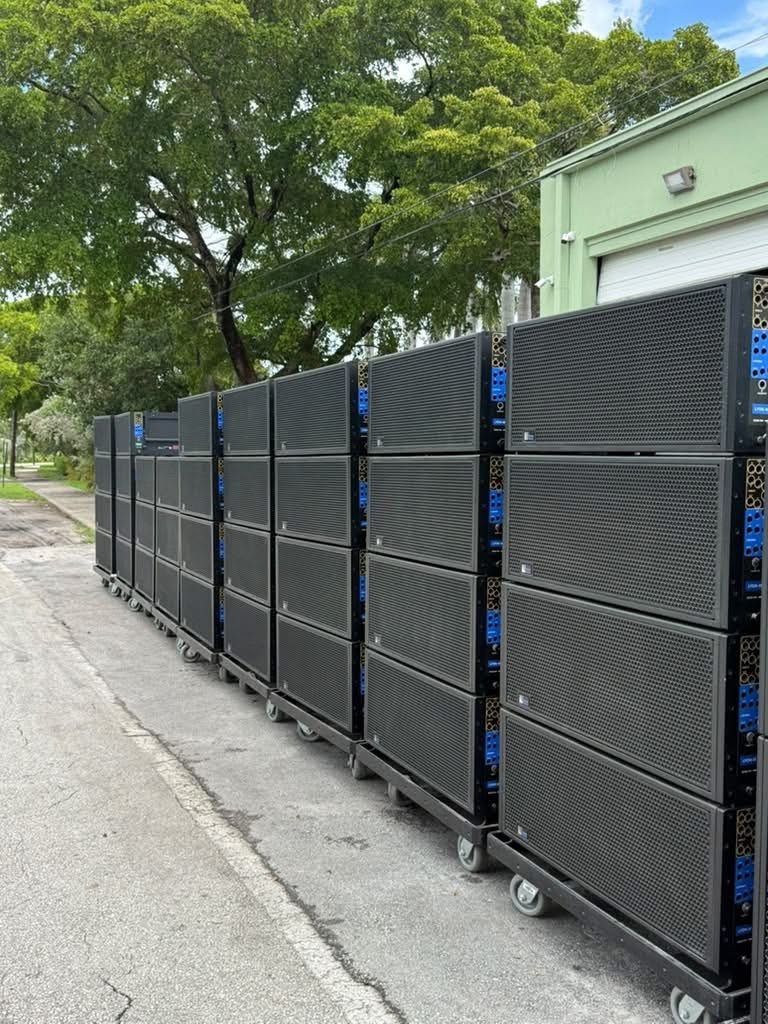

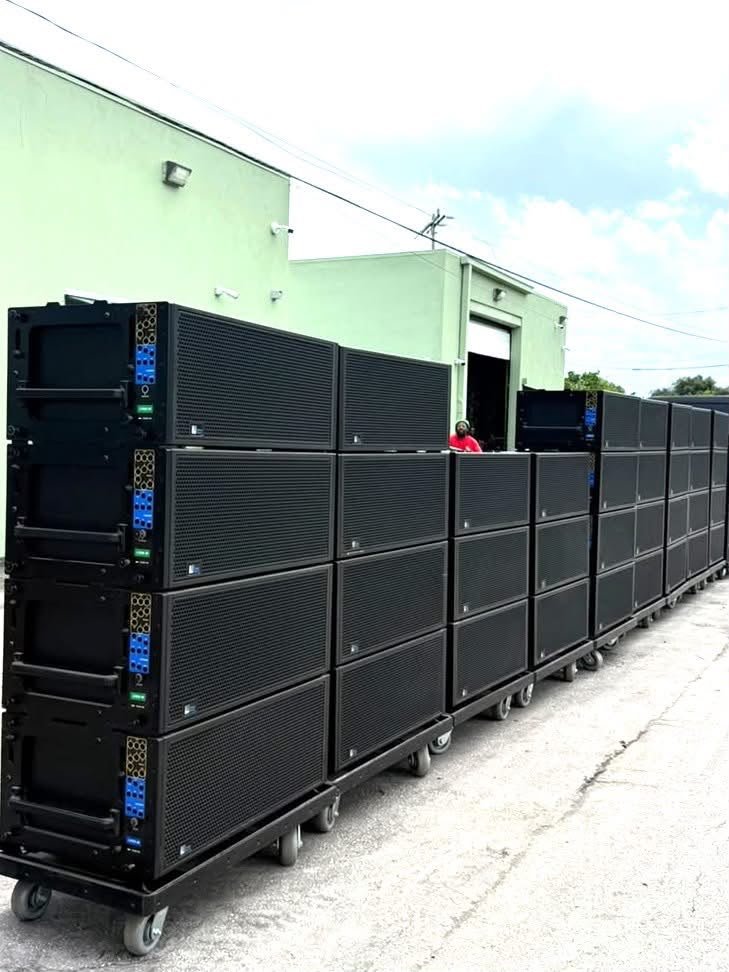

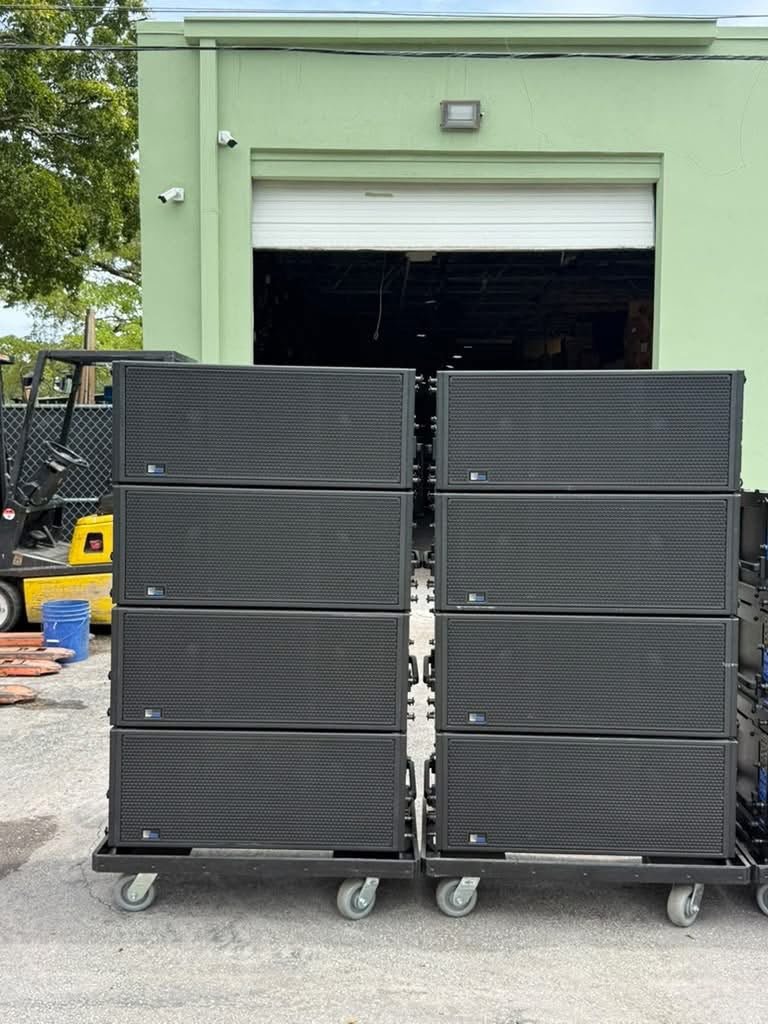

Transport Cart Included

The package also includes a compatible transport cart or caster frame. The Meyer Sound accessory designed for transporting LYON cabinets is the MCF-LYON caster frame.

The caster frame can transport connected cabinets in blocks, reducing the amount of handling needed during setup and breakdown. Keeping several cabinets together can make it easier for touring crews to move the equipment between the truck, staging area and performance location.

Meyer Sound specifies that its caster frame can transport up to four LYON cabinets. The actual number supplied on each cart should be confirmed before transport.

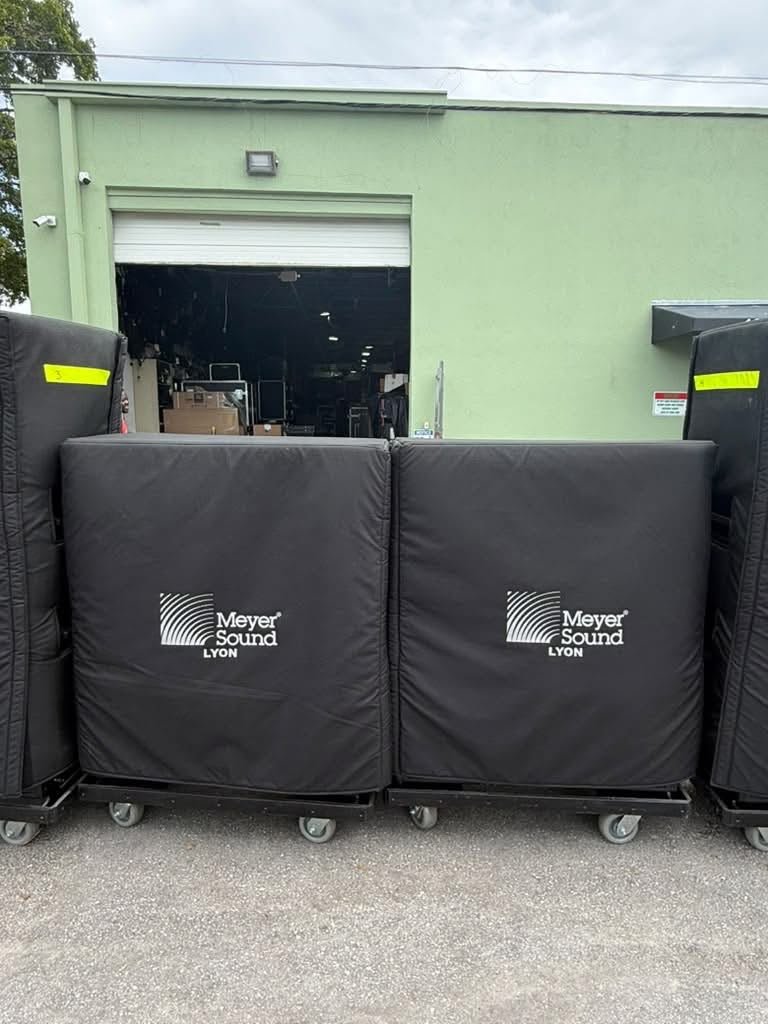

A protective cover may be placed over a stack during storage or transport when one is available. Covers should only be described as included if they are listed on the quotation.

The weight and size of a loaded cart should be considered when planning ramps, truck space, doorways and loading personnel.

Durable Touring Construction

The Meyer Sound LYON-M cabinet is constructed from premium multi-ply birch plywood and finished with a slightly textured black coating. A powder-coated steel grille with acoustical mesh protects the drivers.

Each cabinet measures approximately:

* Width: 38.15 inches or 969 mm
* Height: 14.85 inches or 377 mm
* Depth: 21 inches or 533 mm
* Weight: 199 pounds or 90.3 kg

These dimensions make transport planning important, especially when several connected cabinets are carried on one caster frame.

Used touring loudspeakers may show cosmetic marks from professional handling. Surface wear should be evaluated separately from operating condition because normal cosmetic signs do not necessarily affect performance.

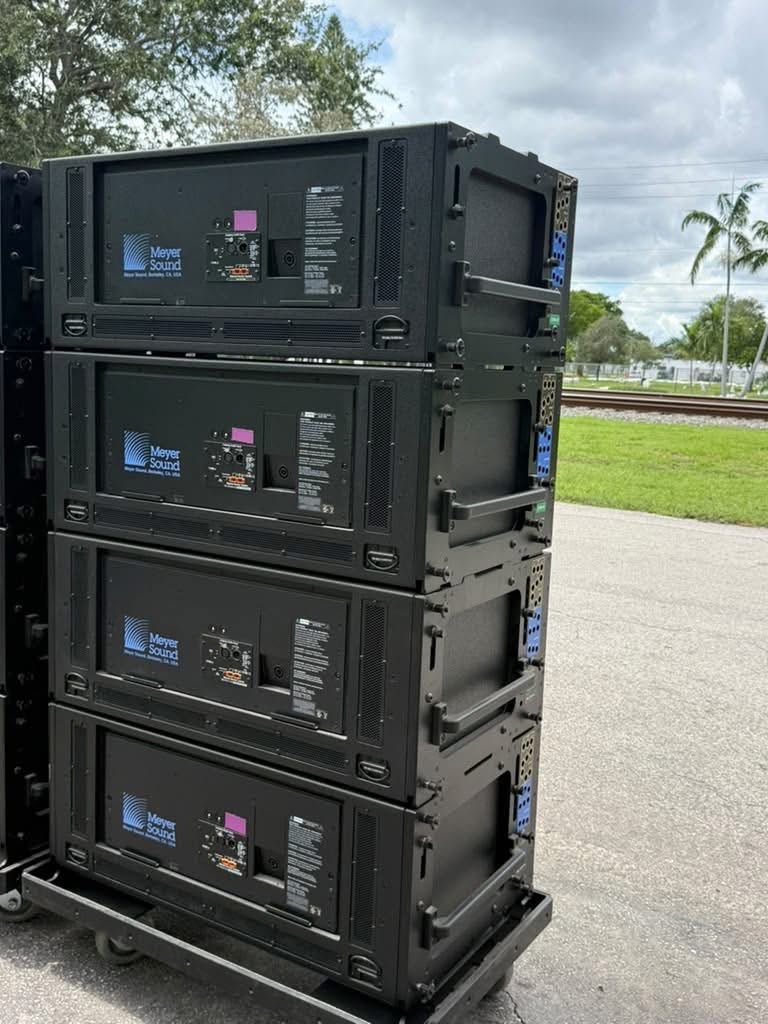

Request photographs of the cabinet, grille, rigging, rear amplifier module, connectors and serial-number plate before completing a purchase.

RMS Remote Monitoring

Meyer Sound LYON-M loudspeakers include an RMS remote-monitoring module. When connected to the appropriate Meyer Sound RMS equipment and software, the system allows technicians to monitor important operating information from the loudspeakers.

Remote monitoring can be particularly useful in a large system containing many self-powered cabinets. It allows the system technician to observe operating status without checking every cabinet individually.

Connector configurations may include five-pin XLR connections that carry balanced audio and RMS signals or three-pin XLR connections intended for balanced audio. Check the rear panel of the actual units to confirm their configuration.

RMS monitoring requires the appropriate network equipment and software. A loudspeaker’s RMS module does not by itself provide a complete monitoring network.

Power Requirements and Connections

The LYON-M uses a powerCON 32 AC connection and operates with professional AC power systems. Its power supply supports nominal voltage environments used in Europe and other international regions.

At 230 volts, Meyer Sound specifies a burst current of approximately 7.5 amps per cabinet. Actual system power distribution should be planned using the manufacturer’s current specifications and the number of loudspeakers connected to each circuit.

A large array requires properly rated cables, connectors and distribution equipment. Voltage drop should be considered when long power cables are used.

The LYON-M audio input is electronically balanced. Depending on the cabinet version, connections may use three-pin or five-pin XLR connectors. Confirm the connector format before purchasing additional cables.

Integration With Other Meyer Sound Equipment

The Meyer Sound LYON-M can form the main array in a professional concert system or operate alongside other Meyer Sound LEO family products.

It can integrate with LEO-M loudspeakers for downfill, midfill, sidefill or outfill applications when the system is correctly designed. Transition frames are available for specific combinations involving LEO-M, LYON and LEOPARD cabinets.

For low-frequency reinforcement, LYON systems are commonly paired with the Meyer Sound 1100-LFC. A Galileo GALAXY network platform can provide routing, alignment and processing for the complete loudspeaker system.

System compatibility does not remove the need for proper setup. Levels, delay, processing and physical placement should be selected for the equipment and verified at the venue.

Ideal Professional Applications

The Meyer Sound LYON-M is suitable for demanding professional applications such as:

* Concerts and international touring
* Music festivals and outdoor productions
* Arenas and large auditoriums
* Theaters and performing arts centers
* Houses of worship
* Corporate events and conferences
* Professional AV rental inventories
* Permanent venue installations
* Sidefill, outfill and downfill systems
* Large-scale live sound reinforcement

Its combination of high output, controlled coverage and self-powered operation makes it a versatile option for production companies and venues using Meyer Sound systems.

Condition and Testing

These used Meyer Sound LYON-M loudspeakers are inspected and tested before sale. Testing should confirm the operation of the low-frequency drivers, high-frequency section, internal amplification, signal connections and power system.

The cabinet, grille, rigging points, GuideALinks and pins should also be visually inspected. The cart and fly frame should be checked for completeness and condition.

Normal cosmetic signs of professional use may be present. Detailed photographs and serial-number information can be supplied to help buyers evaluate the available equipment.

Any operational guarantee, return terms or inspection period should be clearly stated on the final quotation or invoice.

What Is Included?

The package includes:

* Selected quantity of Meyer Sound LYON-M loudspeakers
* Compatible caster cart or transport frame
* Compatible LYON fly frame
* Available rigging pins and linking hardware
* Available power cables, when specified
* Professional testing before dispatch

Only the equipment listed on the final invoice is included. Subwoofers, Galileo processors, power distribution, signal cables, motors and protective covers are available separately unless specifically added to the package.

European Delivery and Collection

can arrange delivery within France and to other European destinations. International delivery may also be quoted according to the quantity, destination and required freight service.

These cabinets are heavy professional loudspeakers, so larger orders will normally require palletized or dedicated freight. Buyers should provide the complete delivery address and confirm whether suitable unloading equipment is available.

Contact http://soundprotec.shop with the required quantity and delivery postcode to request a detailed quotation.

Choose the Meyer Sound LYON-M package when you need a professional, self-powered line array supplied with essential transport and flying equipment. Contact us for current availability, pricing, photographs and complete package information.
